SPECIFICATIONS

Barcode: No

Brand Name: NoEnName_Null

CE: Certificate

Certificate Number: NAP25070252C01E

Certification: CE

Charging Voltage: 7.4V

Choice: yes

Control Channels: 3 channels

Design: Cars

Dimensions: 190*120*99mm

Features: REMOTE CONTROL

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Material: Metal,Plastic,Carbon Fiber

Model Number: UCX2405

Origin: Mainland China

Package Includes: Original Box,Batteries,Operating Instructions,Remote Controller,USB Cable

Recommend Age: 14+y

Remote Control: Yes

Remote Distance: 60m

Scale: 1:24

State of Assembly: Ready-to-Go

Tire Track: 117mm

Type: Car

Warning: please read the manual before use

Wheelbase: 135mm

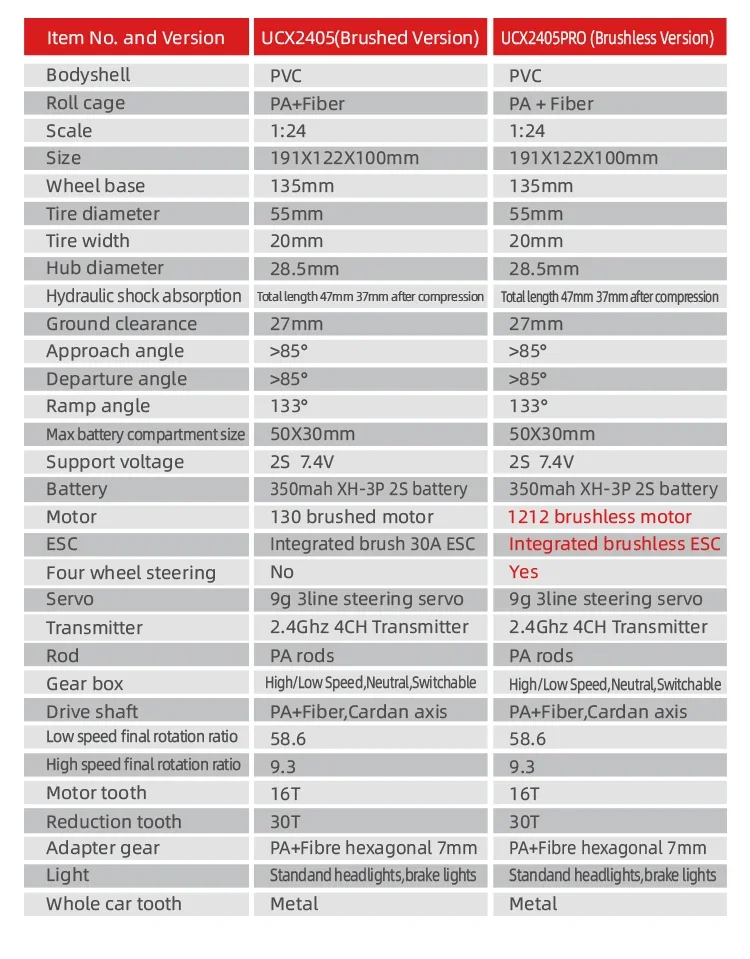

Parameter

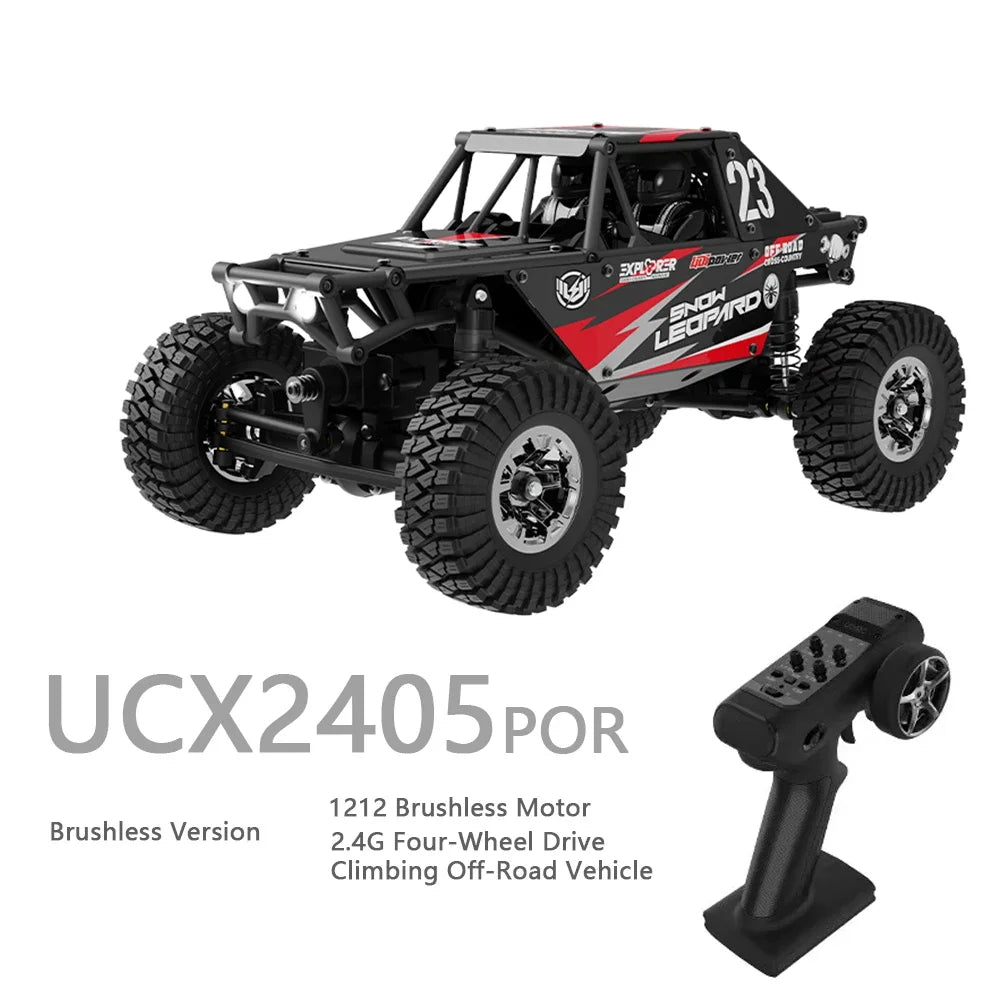

Item No:UCX2405/UCX2405 PRO

Scale:1/24

Color: Black and yellow

Max Speed:20km/h (brushed Version)

25km/h (brushless version)

Power System

ESC:30A integrated brushed esc/30A integrated brushless esc

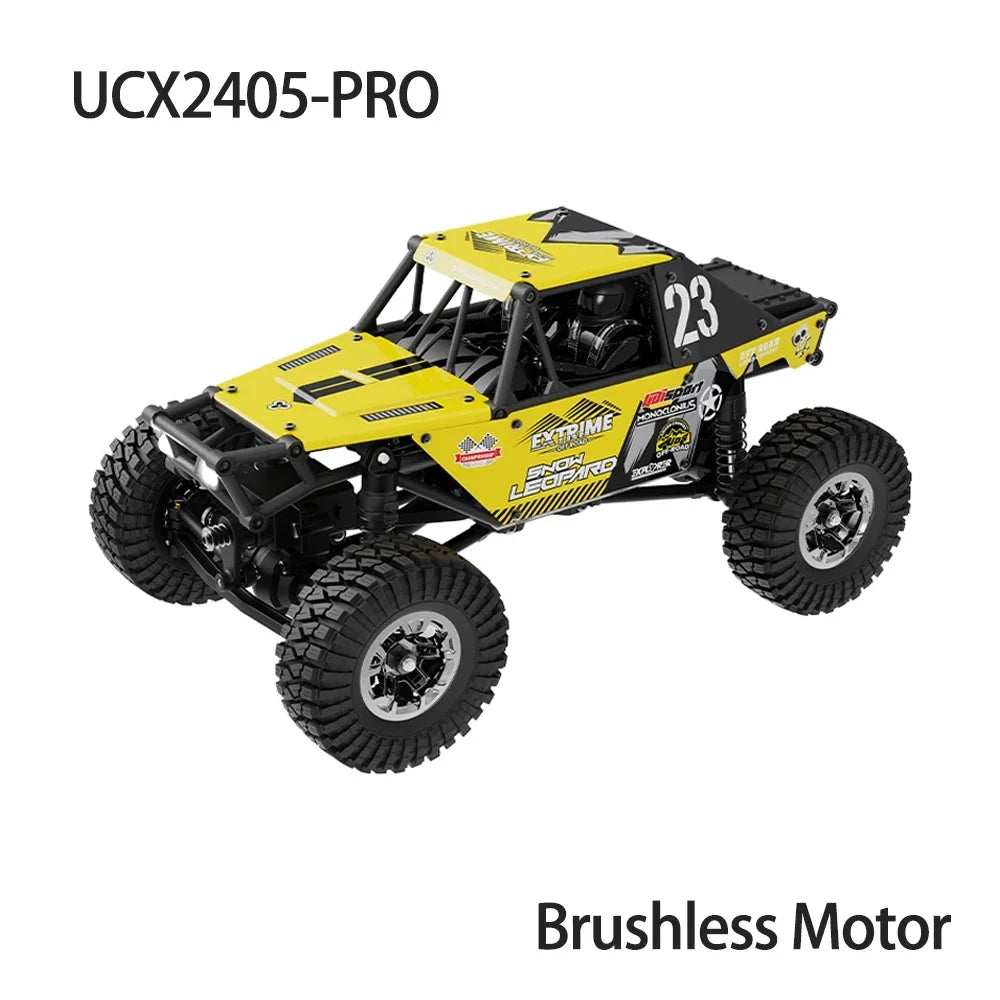

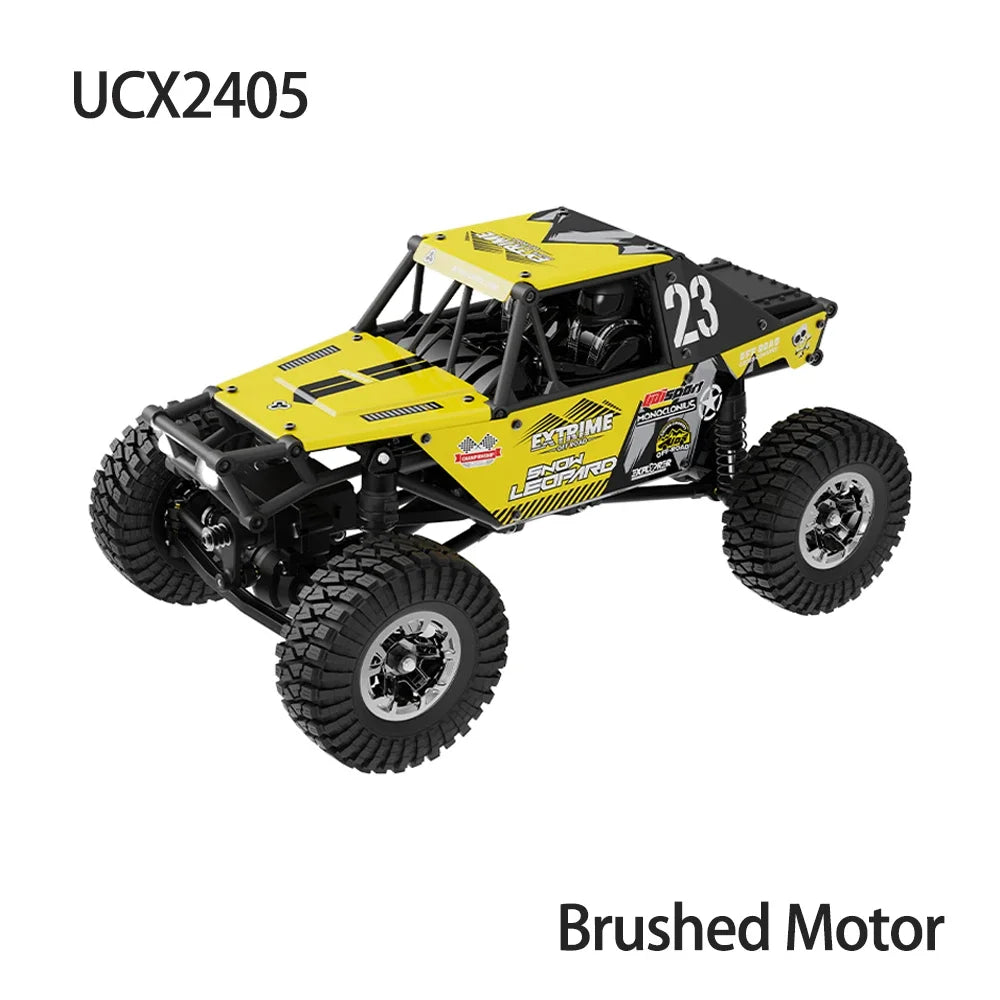

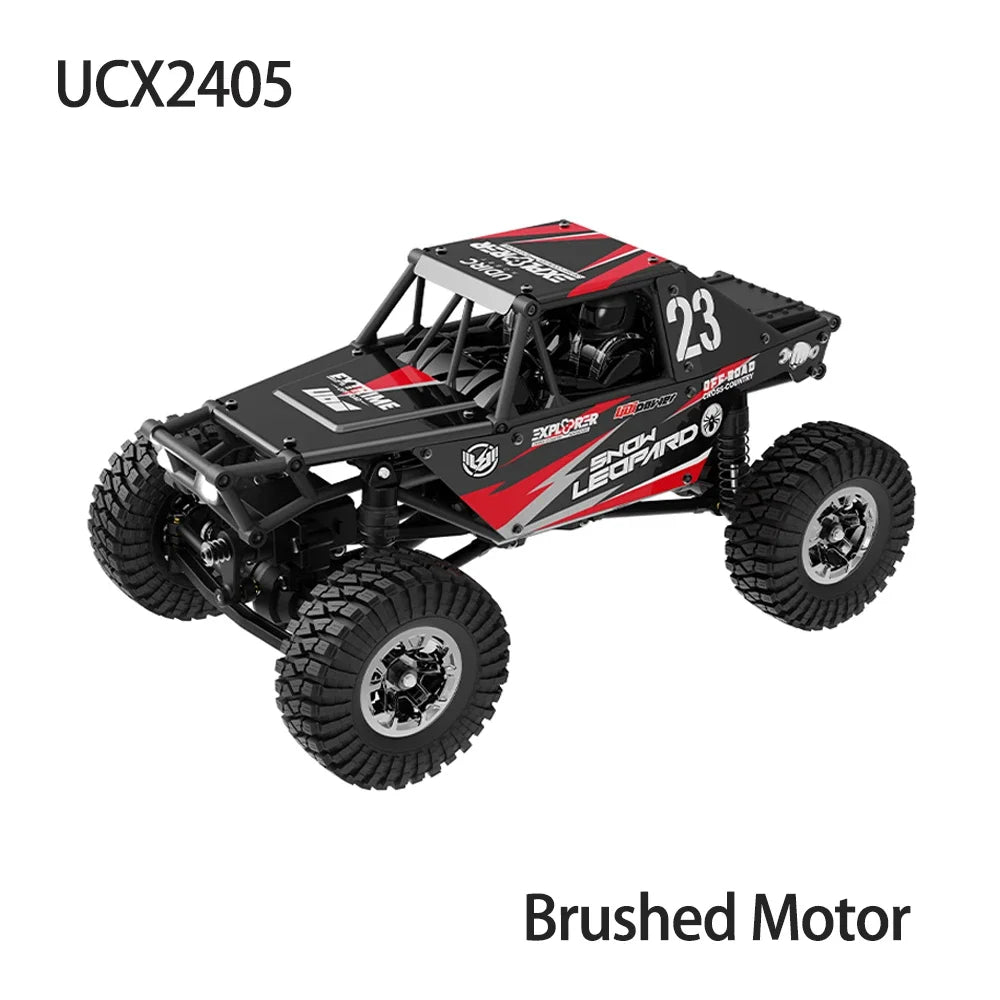

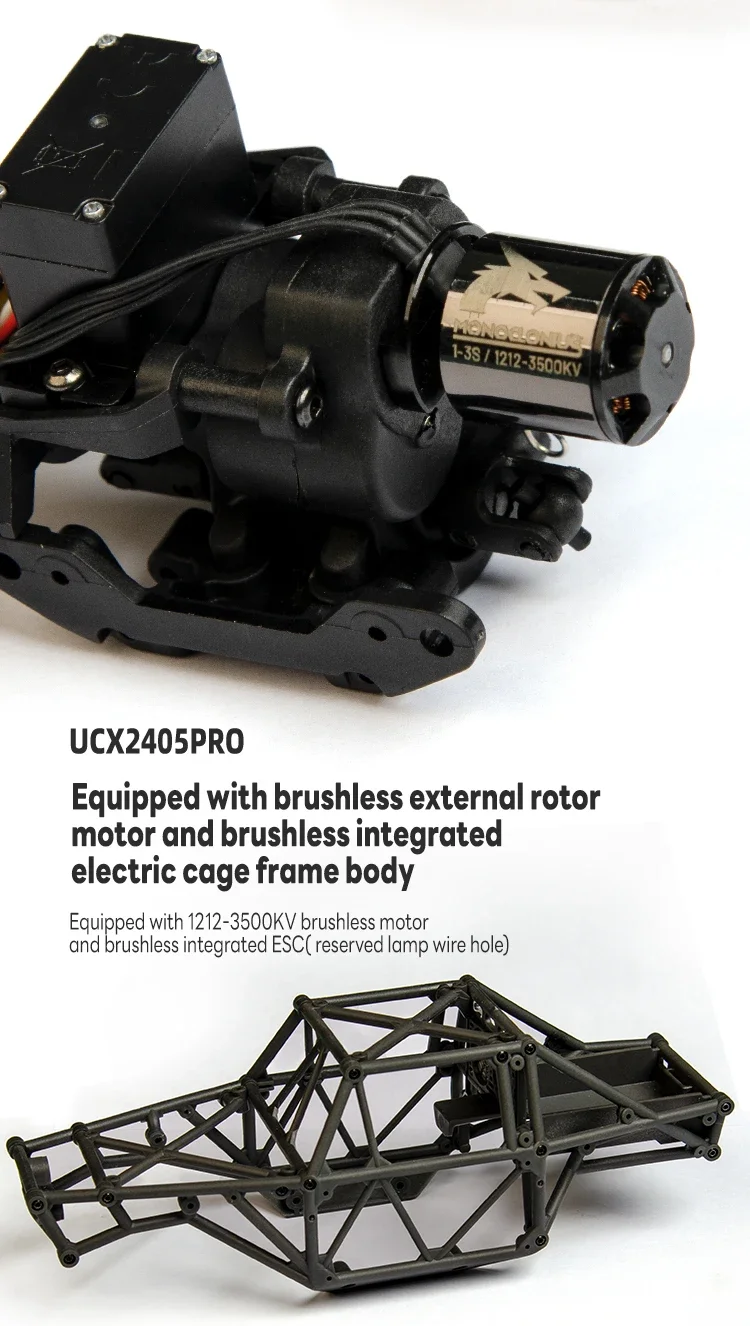

Motor:130 16t brushed motor/1212 16t brushless motor

Servo:9g 3 wires 1kg torque steering servo

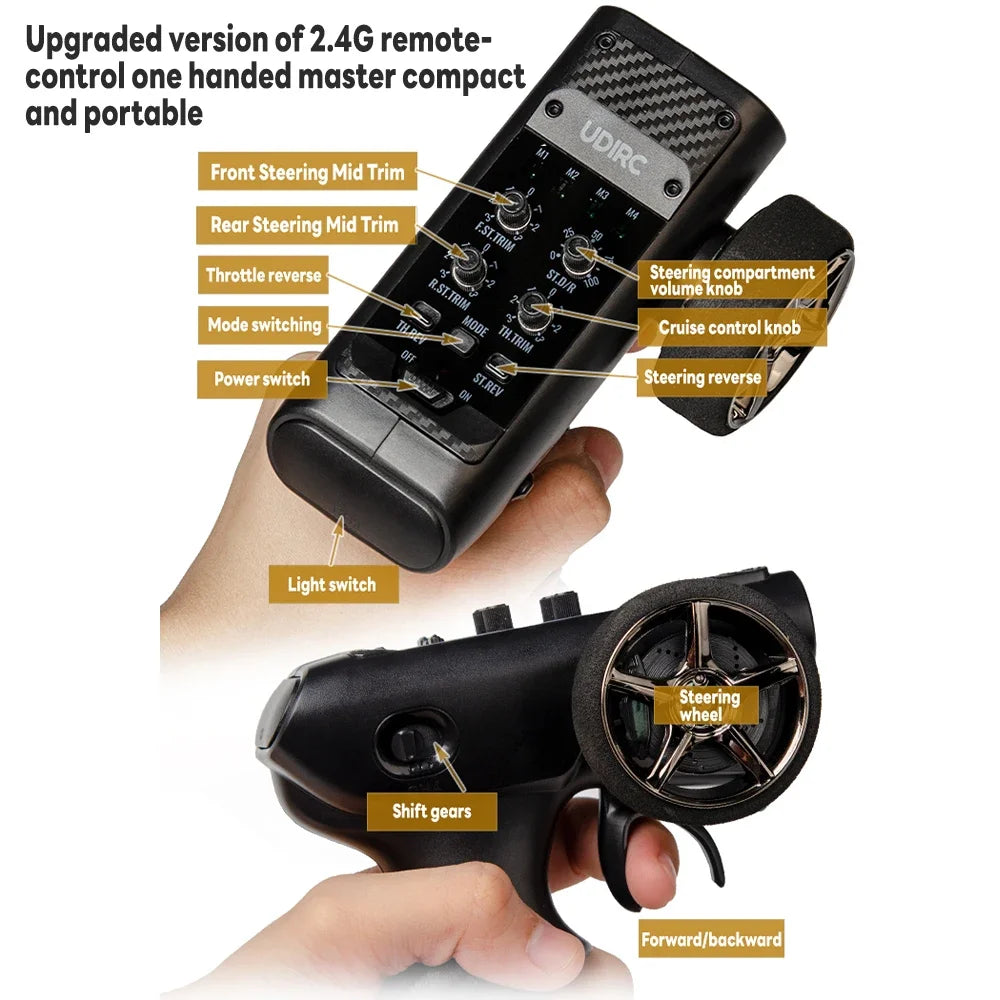

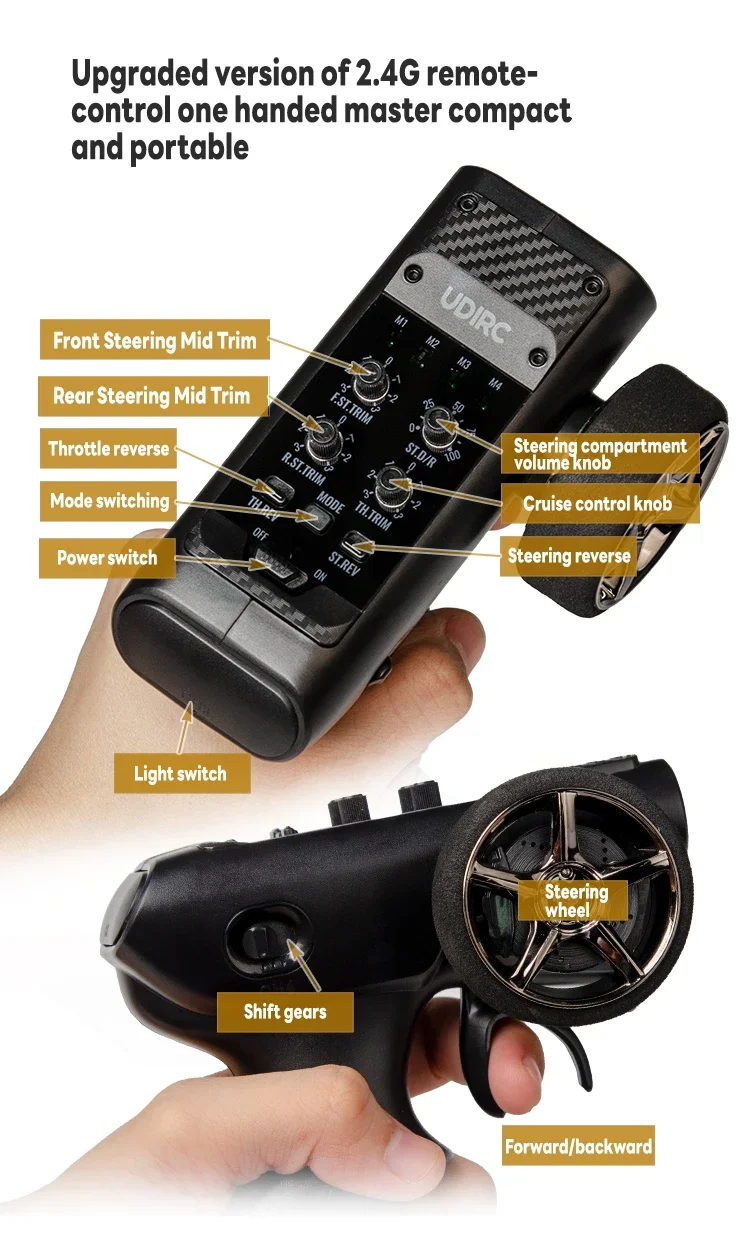

Transmitter

Frequency:2.4G

Channel:4CH

Remote Distance:60m

Required Battery:4X 1.5V AA battery(not included)

Battery

Battery for The Car:7.4V 360mAh XH-3P 2S Li-ion battery

Battery Charging Time:About 1 hours

Battery Using Time:About 20/25 minutes(brushless/brushed version)

Other

Material:PA+metal+electronic parts

Car Weight:About 342/352g(with battery weight)

Low/High Speed Transmission Ratio:58.6/9.3

Reduction Gear:30T

Approach/Departure Angle:>85°

Through Angle:133°

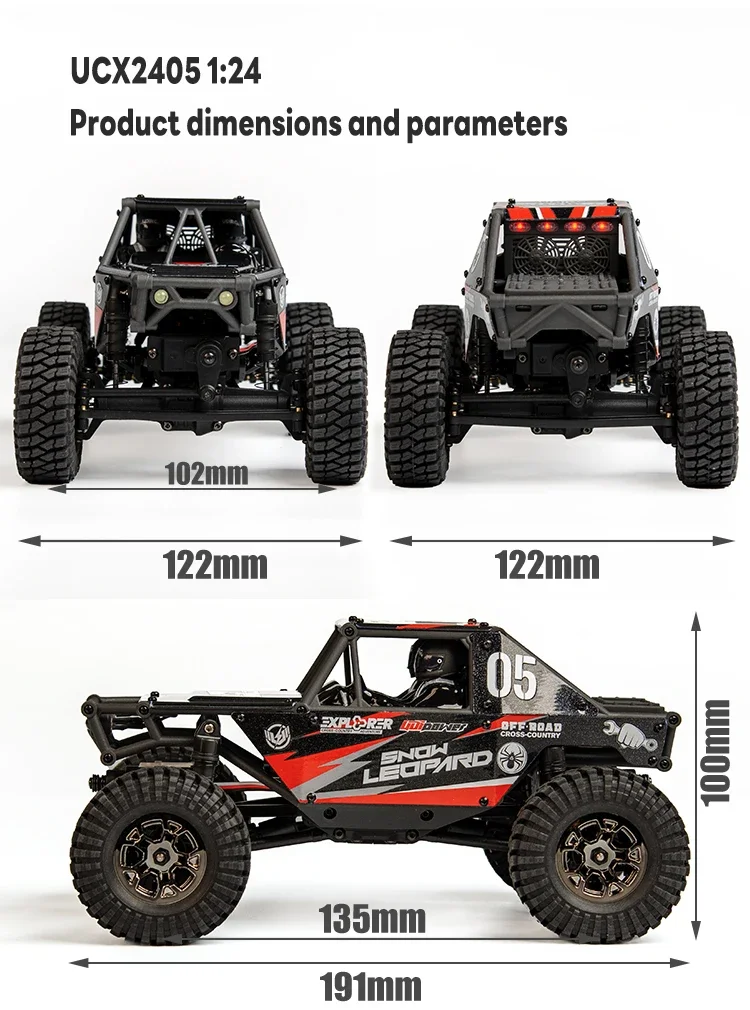

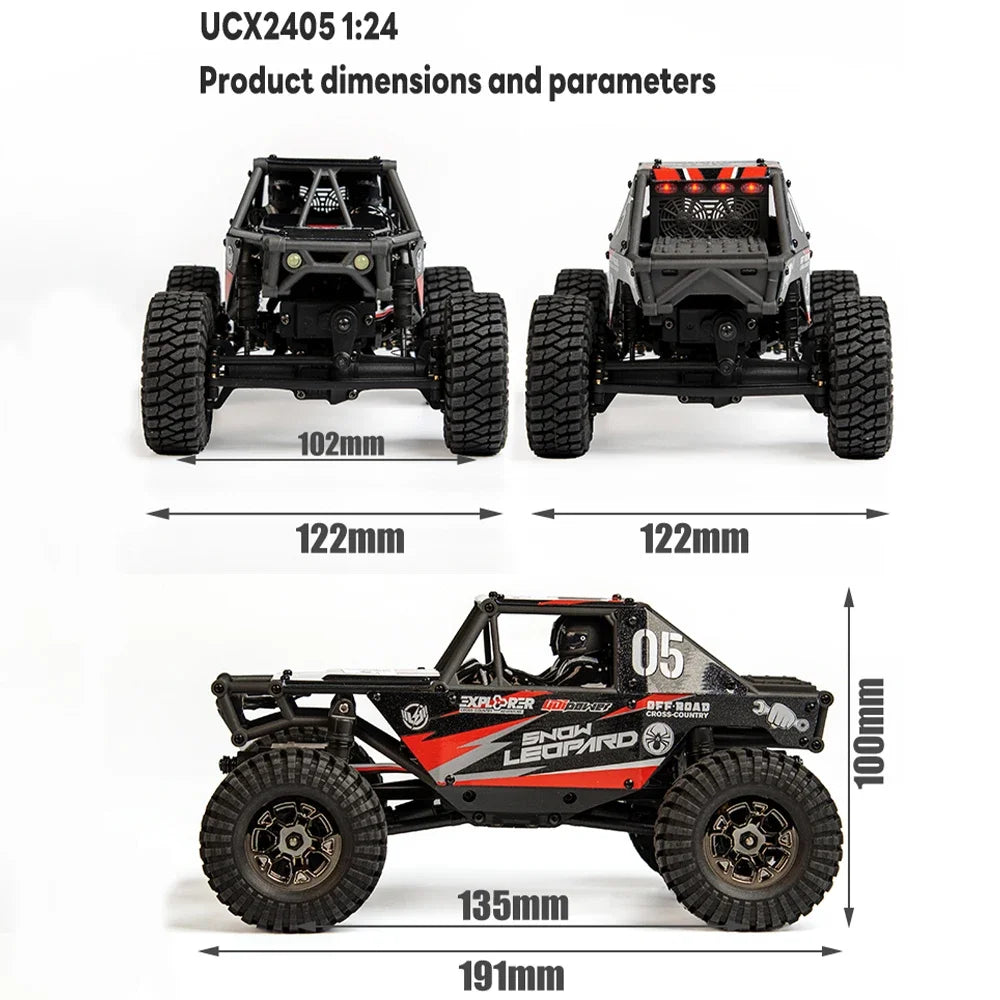

Car Size:190*120*99mm

Track Width:117mm

Tire Diameter/Width:55/20mm

Wheel Rim Diameter:28.5mm

Wheelbase:135mm

Shock Absorber:Total length is 47mm,after compress:37mm

Max Battery Tray Size:50*30mm

Ground Clearance:27mm

Hex Adapter:7mm

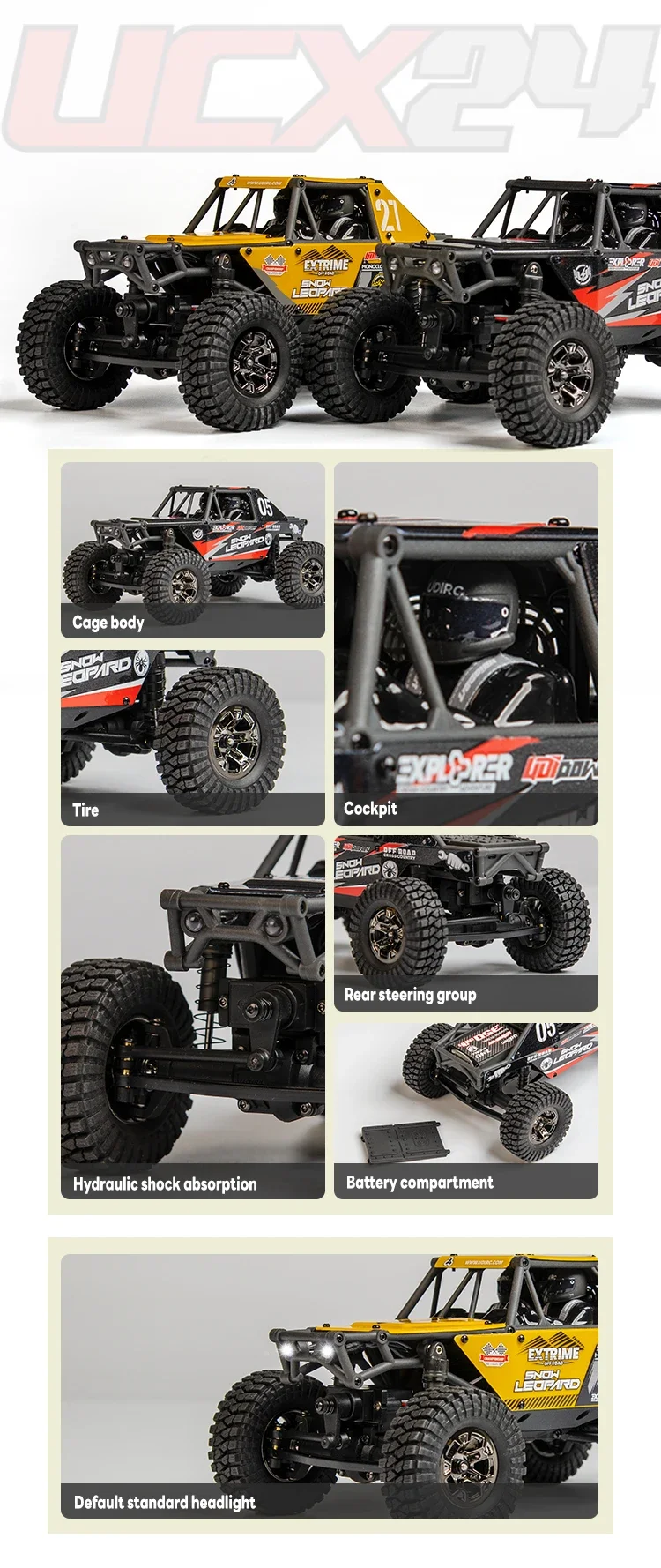

Features:

1,PVC body shell,PA+fiber roll cage,PA linkage rod,PA+fiber,universal joint drive shaft,PA+fiber hex adapter

2,Controllable front headlight,brake light,metal full car gears,headlight high-brightness lamp set

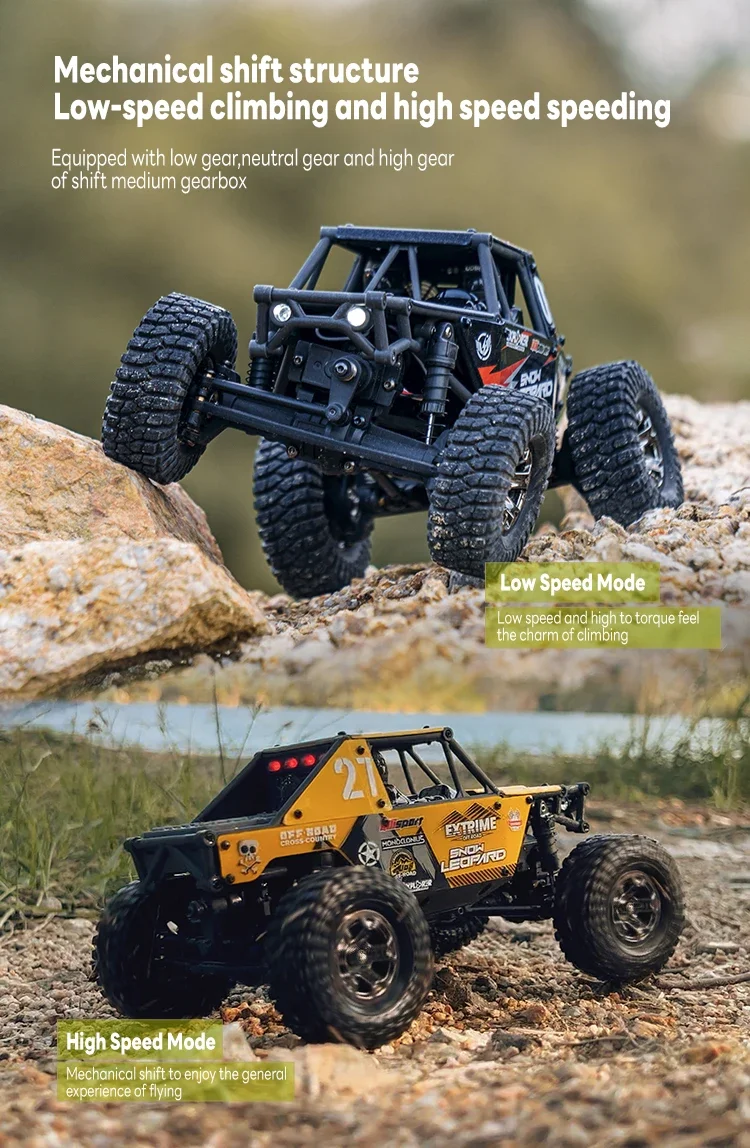

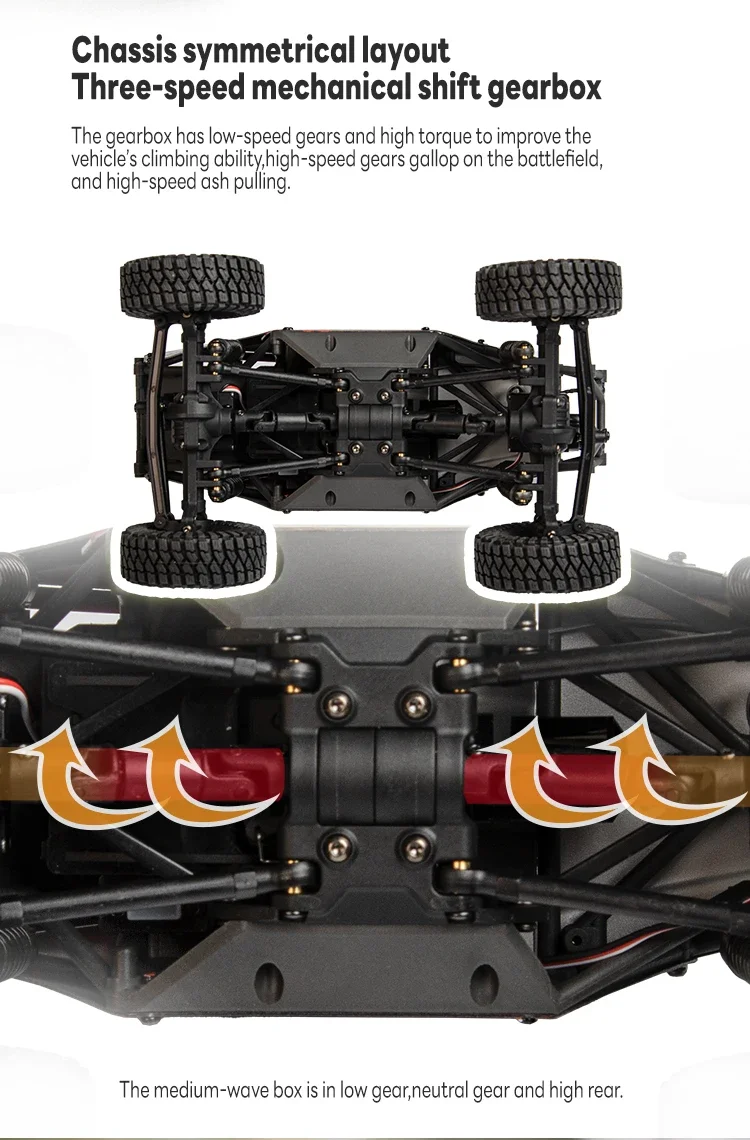

3,The gearbox can be high speed, neutral, low speed, and mechanical gear shifting,which is controllable

4,High speed bearings ball throughout the vehicle

5,2.4G full-proportional synchronous remote control system

You can upgrade differential by yourself,important parts can be upgraded metal parts

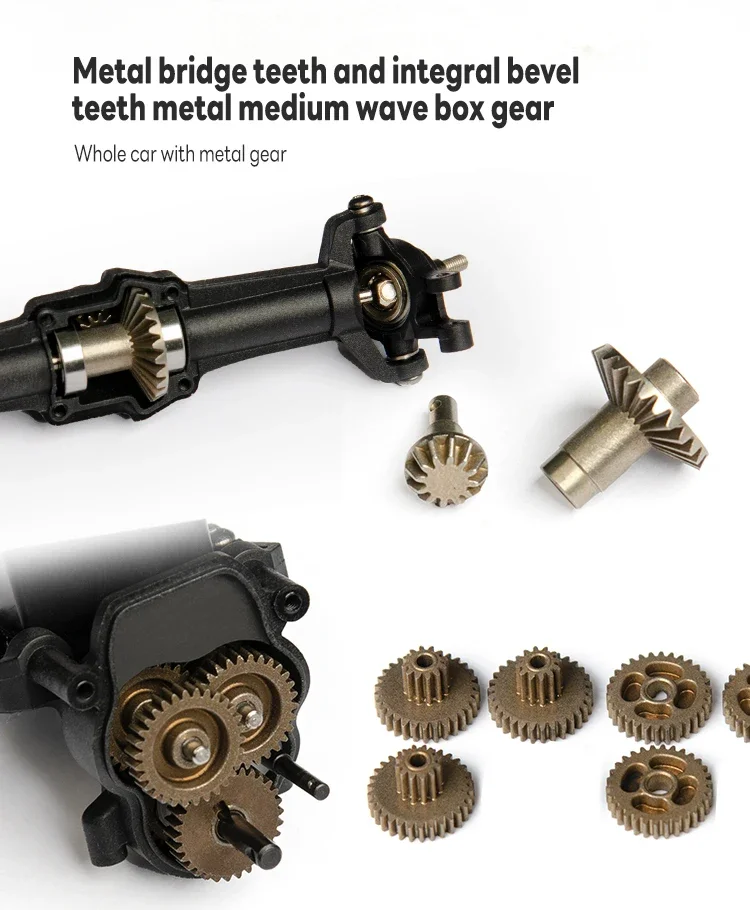

6,Metal bevel gear + integrated bevel gear,climbing tires,front-stage simulated axle,abundant upgrade parts

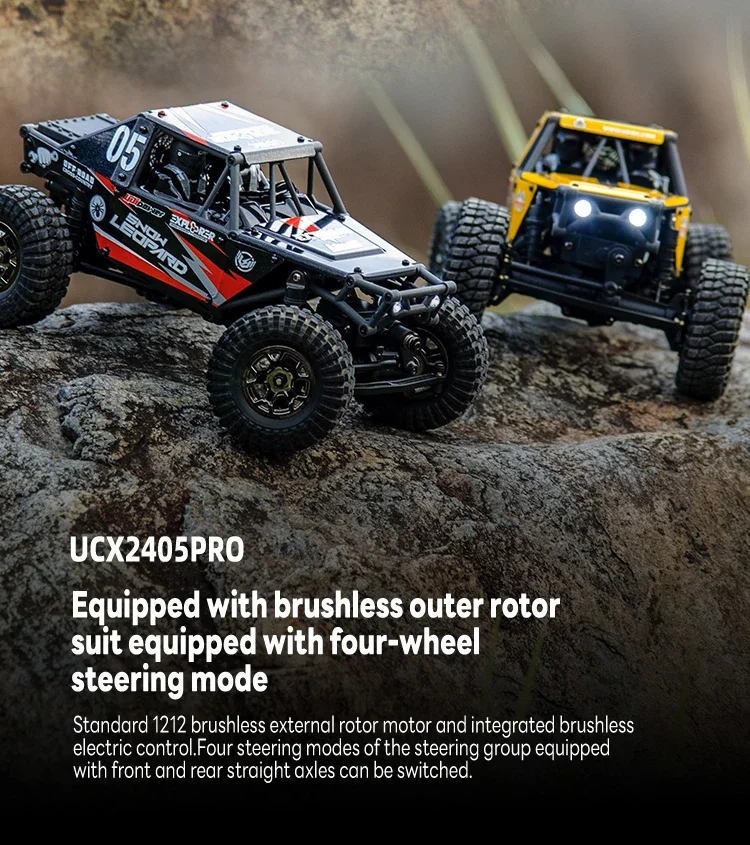

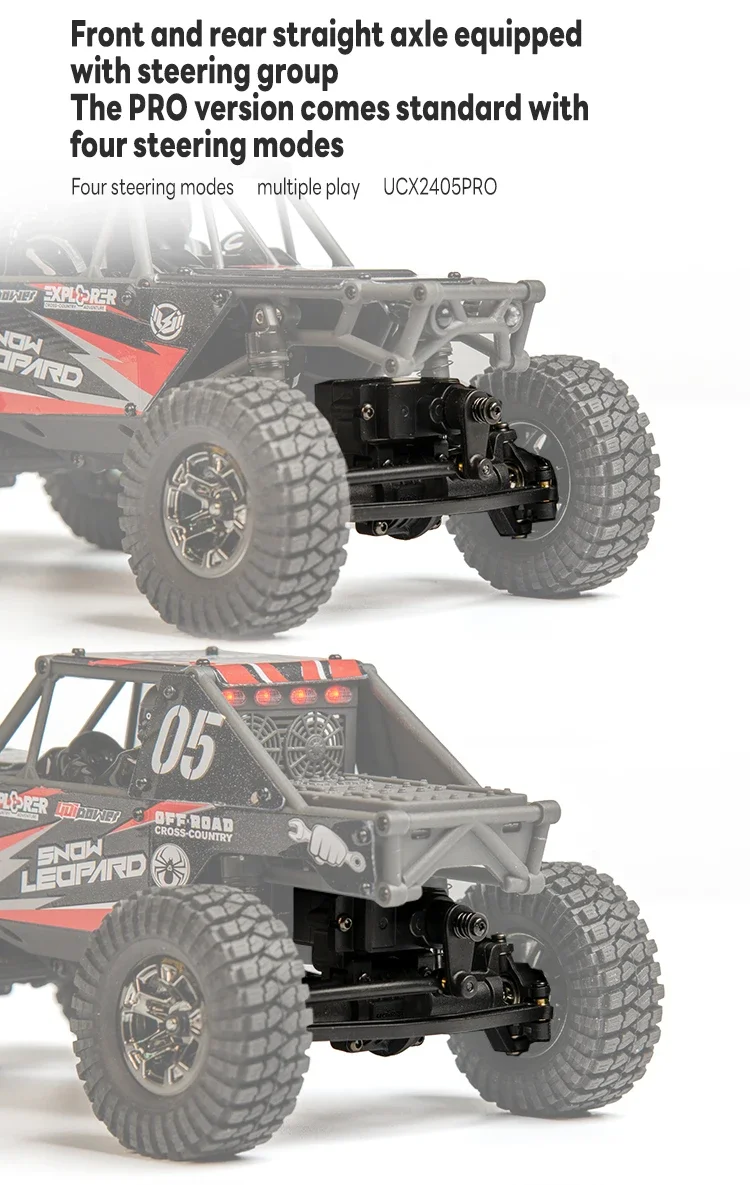

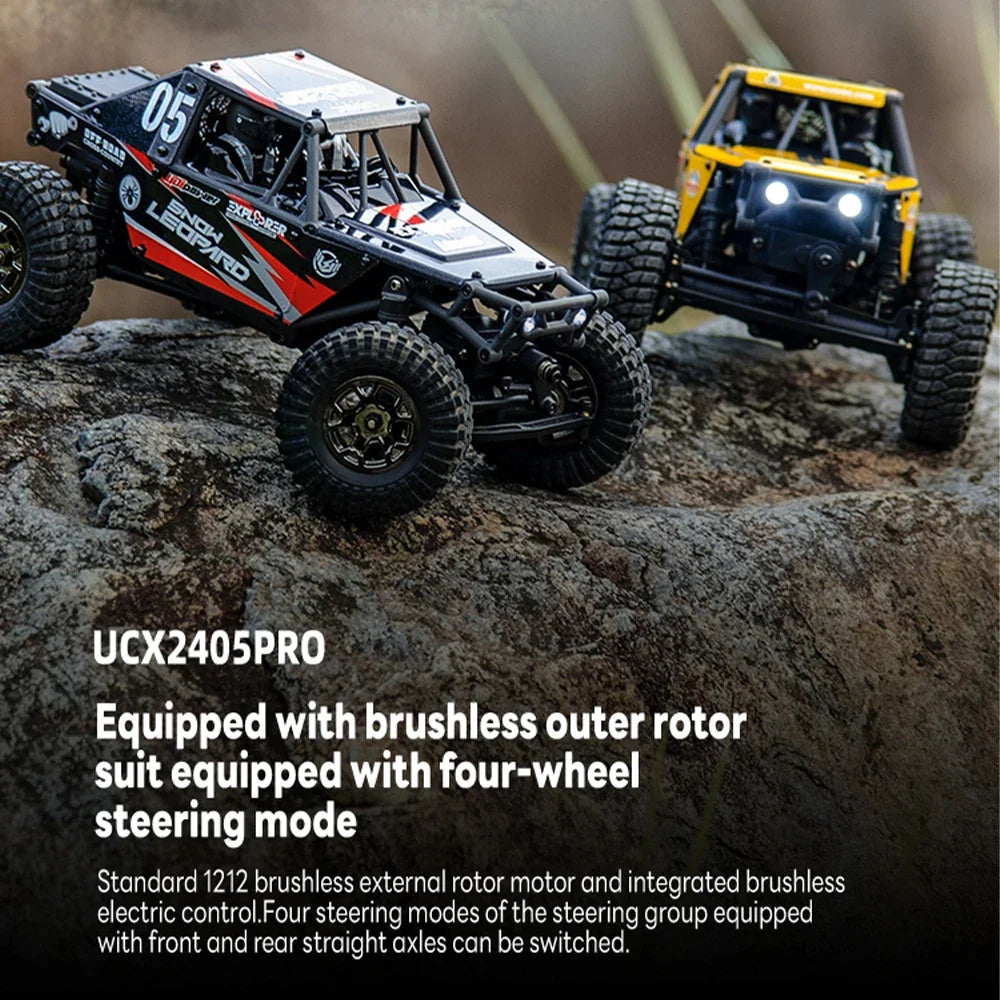

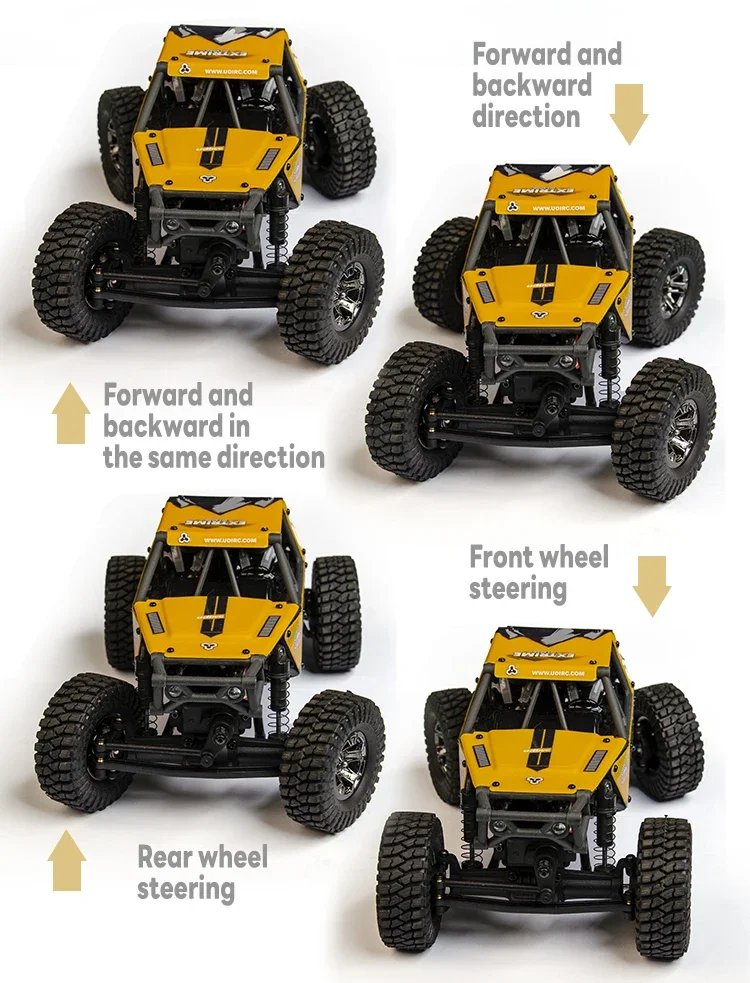

Four-wheel steering(only brushless version has),four oil filled shock absorbers,shiftable medium gearbox (metal gear)

Packaged Included:

1X RC Car

1X Battery

1X Remote Controller

1X Instruction Manual

1X USB Charging Cable
